ALPHAFLO G SERIES PUMP

AlphaFlo G series pumps are designed for gravel and dredging operations to handle very large particles specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution.


(Interchangeable with OEM Warman G and GH series Pump).


All OEM pump parts information are for reference only and AlphaFlo is not affilicated with OEM.


E-mail. info@alphaflo.com

SLURRY PUMP MODELS

ITEM NO. PUMP SERIES PUMP SIZE PUMP FRAME TYPE PUMP MODEL
1 G 6X4 D 6/4 DG
2 G 6X6 E 6/6 EG
3 G 8X6 E 8/6 EG
4 G 8X8 F 8X8 FG
5 G 10X8 F 10/8 FG
6 G 10X10 F 10X10 FG
7 G 12X10 F 12/10 GG
8 G 14X12 G 14/12 GG
9 G 18X16 G 18/16 GG
10 G 20X18 G 20/18 GG
11 GH 8X6 F 8/6 FGH
12 GH 10X8 F 10/8 FGH
13 GH 12X10 G 12/10 GGH
14 GH 18X16 H 18/16 HGH

BOWL

AlphaFlo - After-market pump parts


  • Bowl (131) is one of the wet end parts and compires the pump casing with other DOOR (013) and back liner (041).
  • Bowl is made of abrasion  resistant high chrome white iron of material code A05.
  • Bowl part number description.
  • EG6131A05 -  EG-6-131-A05
  • EG = Pump frame Type E.
  • 6 = Pump discharge size ( inch)
  • 131 = 3-digit pump part basic number
  • A05 = Material code


WARMAN G PUMP DRAWING

BOWL PART NUMBERS

NO. PART NAME BASIC NO. PART NUMBER MATERIAL PUMP SERIES PUMP SIZE FRAME
1 BOWL 131 DG4131A05 A05 G 6X4 D
2 BOWL 131 EG6131A05 A05 G 6X6 / 8X6 E
3 BOWL 131 FG8131A05 A05 G 8X8 / 10X8 F
4 BOWL 131 FG10131A05 A05 G 10X10 / 12X10 F
5 BOWL 131 GG12131A05 A05 G 14X12 G
6 BOWL 131 GG16131-9A05 A05 G 18X16 G
7 BOWL 131 HG18131A05 A05 G 20X18 G
8 BOWL 131 FGH6131A05 A05 GH 8X6 F
9 BOWL 131 FGH8131A05 A05 GH 10X8 F
10 BOWL 131 GGH10131A05 A05 GH 12X10 G
11 BOWL 131 HGH16131A05 A05 GH 18X16 H

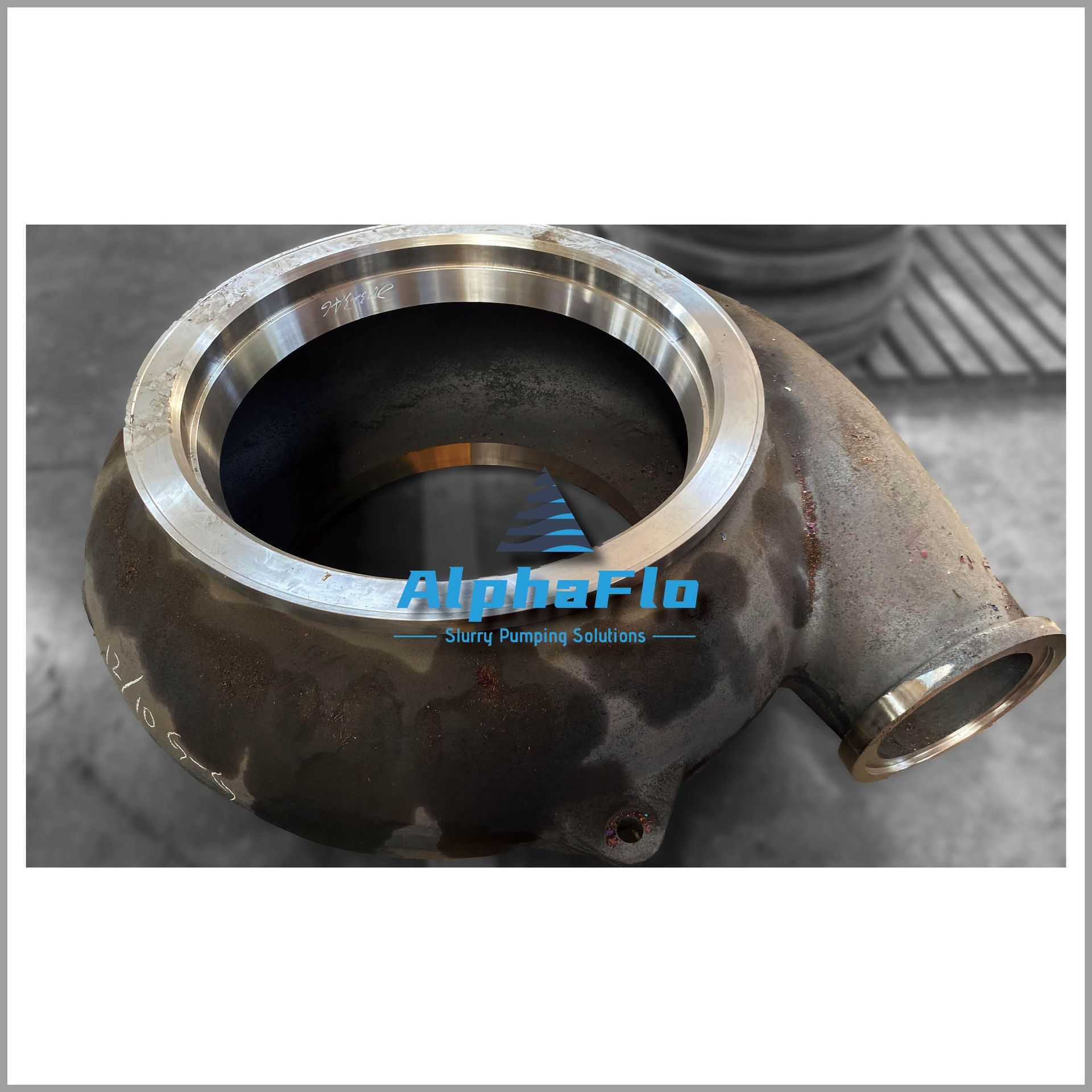

WEIR WARMAN GRAVEL PUMP PARTS 12/10 GG BOWL GG10131A05,
WARMAN G GRAVEL PUMP BOWL
WARMAN GH GRAVEL PUMP PARTS,
