ALPHAFLO LM SERIES PUMP
AlphaFlo LM series LM series rugged heavy duty medium to lower heads slurry pump with the incorporation design of A series plus higher efficiency impeller and wide hydraulics from discharge size 20 to 200mm
(Interchangeable with Warman SC Pump).
All OEM pump parts information are for reference only and AlphaFlo is not affilicated with OEM.
SLURRY PUMP MODELS
| ITEM NO. | PUMP SERIES | PUMP SIZE | PUMP FRAME TYPE | PUMP MODEL |
|---|---|---|---|---|
| 1 | SC | 1 X 4/3 | A | 1/ 4/3 ASC |
| 2 | SC | 3/2 | B | 3/2 BSC |
| 3 | SC | 4/3 | C | 4/3 CSC |
| 4 | SC | 6/4 | D | 6/4 DSC |
| 5 | SC | 8/6 | E | 8/6 ESC |
| 6 | SC | 10/8 | F | 10/8 FSC |

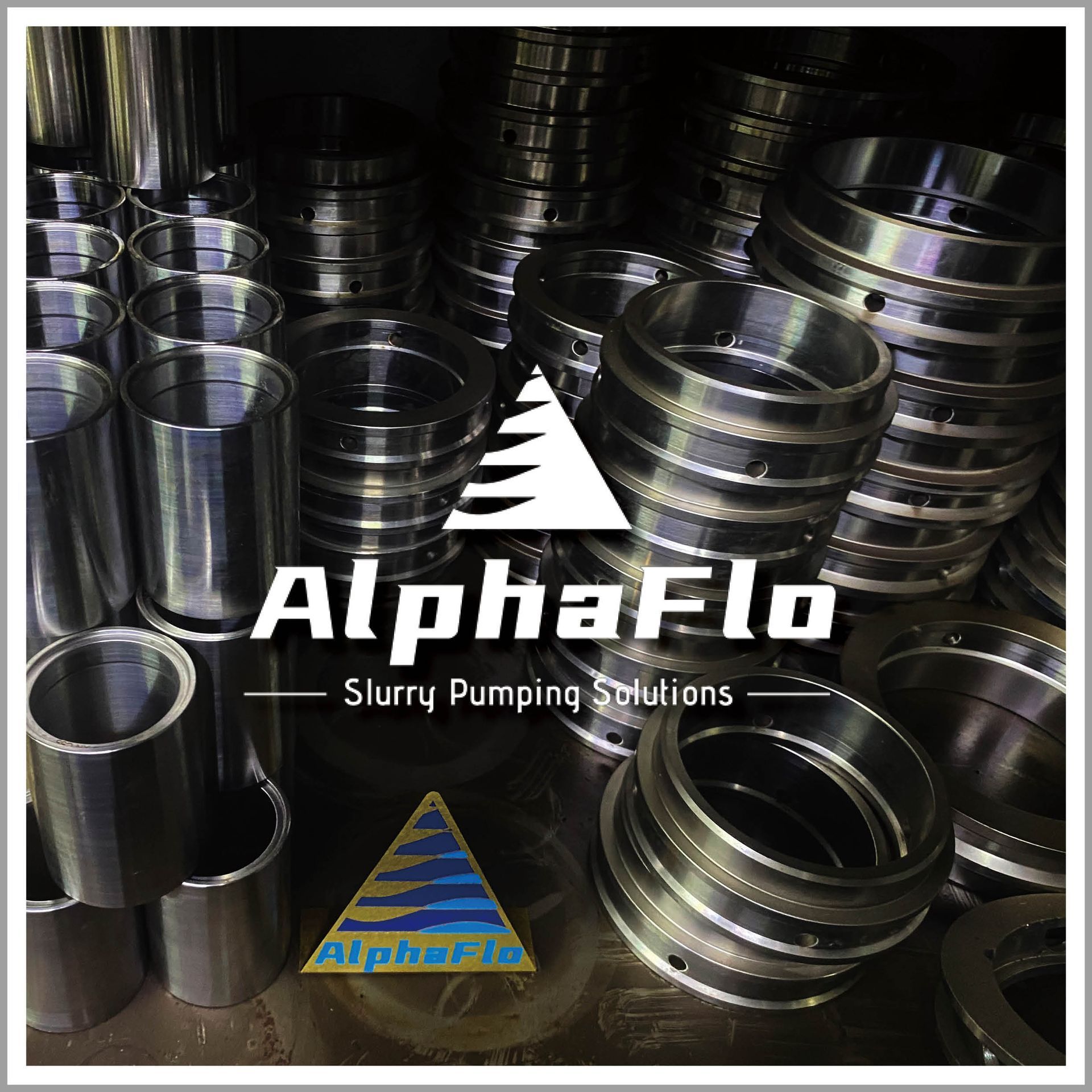

LANTERN RING
AlphaFlo - After-market pump parts
- Lantern ring is for pump centrifugal seal.
- Lantern ring is made of stainless steel.
- Part number description.
- A063C02- A-063-C02
- A = Pump frame Type.
- 063 = 3-digit pump part basic number
- C02= Material code.
LANTERN RING PART NUMBERS
| NO. | PART NAME | PART NUMBER | PART MATERIAL | PUMP SERIES | PUMP SIZE | PUMP FRAME |
|---|---|---|---|---|---|---|
| 1 | LANTERN RING | A063C02 | C02 | SC | 1X 4/3 | A |
| 2 | LANTERN RING | BSC063C02 | C02 | SC | 3X2 | B |
| 3 | LANTERN RING | C063C02 | C02 | SC | 4X3 | C |
| 4 | LANTERN RING | D063C02 | C02 | SC | 6X4 | D |
| 5 | LANTERN RING | E063C02 | C02 | SC | 8X6 | E |
| 6 | LANTERN RING | E063C02 | C02 | SC | 10X8 | E |
