ALPHAFLO LM SERIES PUMP
AlphaFlo LM series rugged heavy duty medium to lower heads slurry pump with the incorporation design of A series plus higher efficiency impeller and wide hydraulics from discharge size 20 to a 650mm.
(Interchangeable with Warman L series Pump).
All OEM pump parts information are for reference only and AlphaFlo is not affilicated with OEM.
SLURRY PUMP MODELS
| ITEM NO. | PUMP SERIES | PUMP SIZE | PUMP FRAME TYPE | PUMP MODEL |
|---|---|---|---|---|
| 1 | M | 12X10 | F | 12/10 FM |
| 2 | L | 350 | S | 350 SL |
| 3 | L | 400 | G | 400 GL |
| 4 | L | 450 | ST | 450 STL |
| 5 | L | 500 | ST | 500 STL |
| 6 | L | 550 | TU | 550 TUL |
| 7 | L | 650 | U | 650 UL |

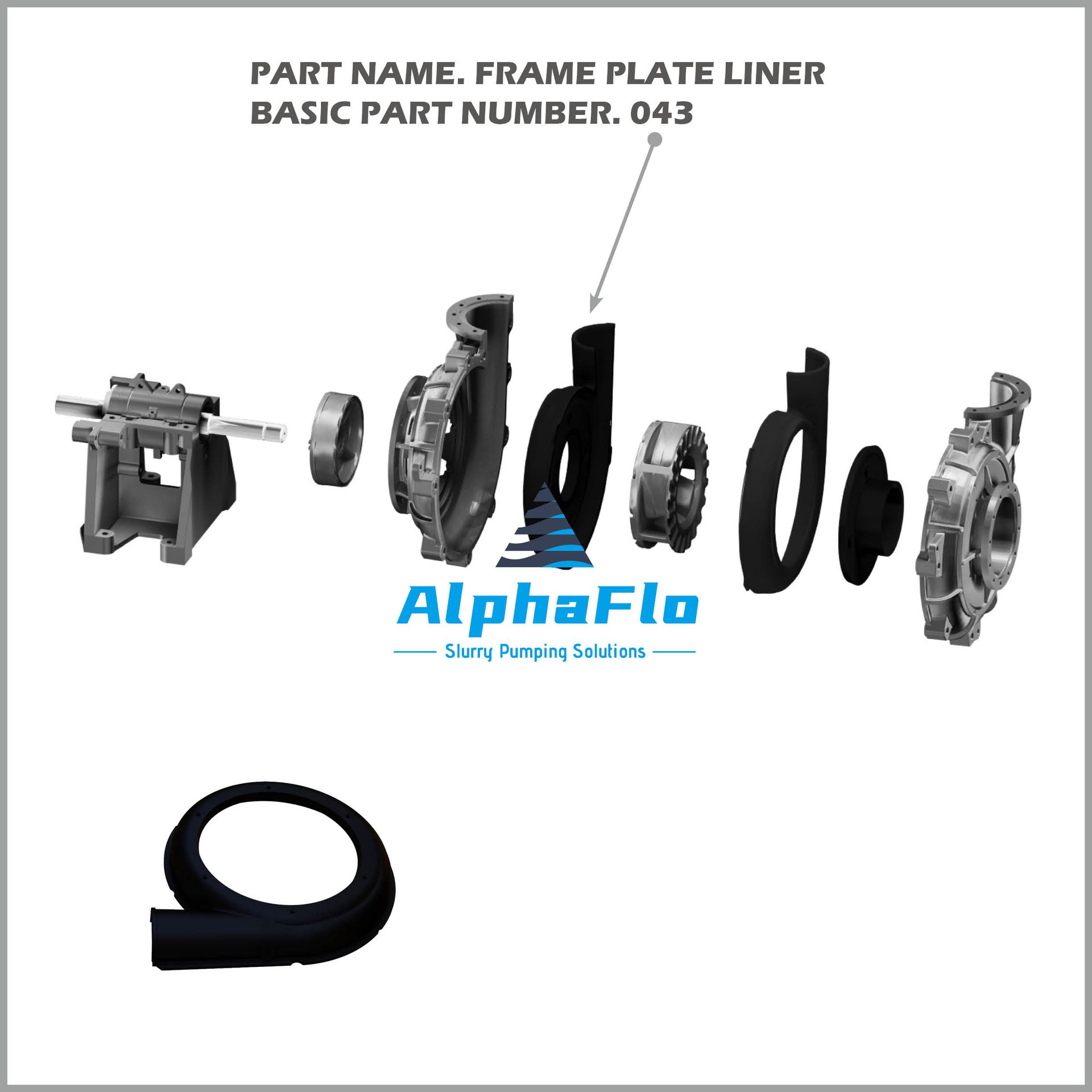

FRAME PLATE LINER
AlphaFlo - After-market pump parts
- Frame plate liner (Back Liner) (043) is a type of liner combined the cover palte liner (018) form the complete rubber lining.
- FP liner made of abrasion or corrosion resistant natrual rubber - material code R26.
- Part number description.
- F10043R26 - F-10-043-R26
- F = Pump frame Type.
- 10 = Pump discharge size ( inch)
- 043 = 3-digit pump part basic number
- R26= Material code
FRAME PLATE LINER PART NUMBERS
| NO. | PART NAME | BASIC NO. | OEM PART NO. | MATERIAL | PUMP SERIES | PUMP SIZE | FRAME |
|---|---|---|---|---|---|---|---|
| 1 | FRAME PLATE LINER | 043 | F10043R26 | R26 | M | 12X10 | F |
| 2 | FRAME PLATE LINER | 043 | SL35043MR26 | R26 | L | 350 | F |
| 3 | FRAME PLATE LINER | 043 | TL40043MR26 | R26 | L | 400 | T |
| 4 | FRAME PLATE LINER | 043 | TL45043MR26 | R26 | L | 450 | T |
| 5 | FRAME PLATE LINER | 043 | TL50043R26 | R26 | L | 500 | T |
| 6 | FRAME PLATE LINER | 043 | UL55043MR26 | R26 | L | 550 | U |
| 7 | FRAME PLATE LINER | 043 | UL65043MR26 | R26 | L | 650 | U |
